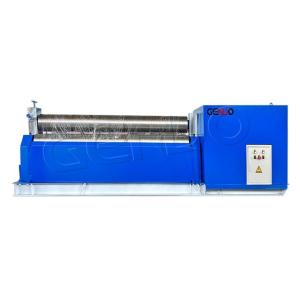

3-Roller Plate MS3R Series Rolling Machine
| Standard Equipment | Optional Equipment |
|---|---|
| ▲ Wireless button remote control | △ Digital screen display control console |
| ▲ C45 hard quenching & tempering roller | △ 42CrMo solid forging roller |
| ▲ Schneider & Omron electrical components | △ Side motorised rolls |
| ▲ Copper alloy anti-wear gear | △ Segmental inlay roller ring |
| ▲ NSK Double row self aligning bearing | △ Centralised manual lubrication |
| ▲ Enclosed sheet metal cover | △ Customized colors |
|
|
Working Roller
Roller is the most important components of the rolling machine, its quality and performance has a direct impact on the service life of the rolling machine and the precision of rolling.
Working rollers are made of high-strength high-quality steel 42CrMo material, after forging, roughing, quenching and tempering, HB240 ~ 300, finishing after the intermediate frequency quenching HRC47-58, according to JB/ZG4289-86 roll steel standards.
Strictly in roller manufacturing, to ensure its comprehensive mechanical properties.
Electrical Components
Schneider Electric components ensure the stable operation of the machine. Reasonable line connection and arrangement greatly reduces
the failure rate. The integrated control module
of hydraulic valve group makes the sliding block move smoothly and accurately.
And the operator and all parts of the machine played a good protection. It's safe, stable and
not easy to break. Low Noise and Powerful
motor guarantee the machine service life
and improve the machine working stability.
Roller Rotation
Stepper Motor → Planetary Gearbox → Working Roll
Symmetric geometry in the roll movement featured by the 3-roll bending rolls of the series assures optimal traction. The upper roll can
bend the plate by moving up and down, while the fixed lower roll can realize the plate rolling by turning forward and backward.
The row self aligning bearing of the upper roll with low resistance plays a strong role in supporting and preventing the sheet from
slipping to the maximum extent.
The machine is a three - roll symmetrical mechanical structure. The upper roller moves up and down in the center of the
two lower rollers. Both nuts and worm gear act as drives. The two bottom rollers serve as the main driving rollers.
By engaging, it rotates between the output gear of the transmission and the bottom roll, thus providing torque to the
bending plate. Simple operation, convenient maintenance, high cost performance.
Main Motor
The main motor rotates the
power via the reducer
and gear drive roller.
Roller Bearing
The wide self-aligning
bearing make the roller
rotate more smoothly.
Electronic Elements
Schneider Electric keeps the machine stable running
and long service life.
Control Panel
Eectric cabinet panel and
remote control. Safe
and easy to operate.
